Internet remote access maintenance
Resistance to Shock, Dust and Water
4.3-inch Color LCD Monitor with Touch Screen
Built-in Dual Sleeve Heater
Auto-Calibration
Powerful Lithium Polymer Battery with Large Capacity.
Product Overview

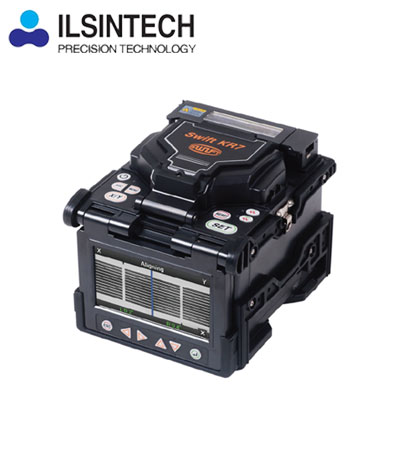

Swift K7 is the advanced typical core
alignment type
fusion splicer for the medium & long range optical circuit LAN, CATV, FTTx
with world-fastest in splicing & sleeve heating time. It delivers high
precision performance with low loss.
ILSINTECH
SWIFT K7 FUSION SPLICER Paling MURAH
|
SWIFT K7 Core to Core Alignment
Swift
K7 is the advanced typical core alignment type fusion splicer for the medium
& long range optical circuit LAN, CATV, FTTx with world-fastest in
splicing & sleeve heating time. It delivers high precision performance
with low loss
|
|
l BENEFITS AND FEATURES
|
|
Internet remote access maintenance
IPAAS
Technology Basis Core Alignment
|
|
Swift K7 is the core alignment splicer based
on the IPAAS (Image Pattern Analysis Alignment System)
Technology. The
fine pixel technology perfects lowest splice loss in average
|
|
Compact, Lightweight and Fast
|
|
This splicer is one of the smallest, lightest and
fastest among all the existing core alignment splicers.
l Dimension
: 143(W) x 163(L) x 140(H) l Weight : 2.25kg l Splicing
Time : 6 seconds
l Tube heat
: 9sec(IS-45 Sleeve, IS-45mode),13sec(IS-60 Sleeve, IS-60mode),
|
|
Resistance to Shock, Dust and Water
|
|
The splicer with high reliability has stable
performance even in a harsh environment
l Shock-Free
Fall : 76cm from 5 sides l Waterproof : IPx2 l Dustproof
: IP5x
|
|
|
|
Powerful Lithium Polymer Battery with Large Capacity
|
|
Performs 300 cycles of fusion splicing and
sleeve heating with the standard battery
|
|
4.3 inch Color LCD Monitor with Touch Screen
|
|
For user’s convenience, LCD monitor has been
designed with touch screen in addition to
the
operation keys.
|
Bidirectional Operation System
For
user’s ergonomic preference, the screen can be turned around for one’s
chosen viewing direction.
Equipped with Sleeve Loader to Prevent Contamination
and to Provide Convenience
While
working in a manhole, the loader prevents the supplementary sleeve from
falling and
being
contaminated.
Working
in aerial space such as telephone pole, the loader also prevents the
supplementary sleeve
from
falling down.
|
|
|
|
|
|
|
Auto-Calibration
Detects the
surrounding environment of temperature, humidity, air pressure and measures
discharge calibration
rate automatically.
|
|
Compatible with Fusion Splice-On Connector(SOC) in
accordance with the Industrial Standard
MS-01, the
manual stripper for Swift Connector
|
|
l SPECIFICATIONS
|
|
Category
|
Description
|
|
Fiber alignment
|
IPAAS core to core alignment(Image pattern analysis
alignment system)
|
|
Applicable type of fibers
|
SM(ITU-T G.652),MM(ITU-T G.651), DS(ITU-T G.653),
NZDS(ITU-TG.655),ITU-T
G.657
|
|
Fiber count
|
Single fiber
|
|
Applicable fiber dimensions
|
Cladding diameter: 80 ~ 150㎛, Coating diameter: 100 ~ 1000㎛
|
|
Fiber setting and cleaved length
|
250㎛: 8~16mm
|
|
Splicing modes
|
Splice mode: 300, Heat mode: 100
|
|
Typical Splice Loss
|
SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB
|
|
Return Loss
|
> 60dB
|
|
Splicing Time
|
Typical 6sec
|
|
Splice loss estimate
|
Available
|
|
Sleeve heating time
|
9sec (IS-45 Sleeve, IS-45 mode), 13sec (IS-60 Sleeve,
IS-60 mode)
|
|
Applicable protection sleeve
|
40mm, 60mm, 32mm or 28mm for SOC
|
|
Storage of splice result
|
The last 10,000 results to be stored in the internal
memory.
(Image
10,000 results)
|
|
Tension test
|
2N / 4.4N
|
|
Operating condition
|
Altitude: 0~5,000m above sea level, Temperature:
-10℃~50℃, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water
proof, shock proof
|
|
Storage condition
|
Temperature: -40℃~80℃, Humidity: 0~95%
|
|
Dimension
|
143(W) x 163(L) x 140(H)mm (Without Bumper)
|
|
Weight
|
With battery 2.25kg
|
|
Viewing method and display
|
Two CMOS cameras and 5.0-inch color touch LCD
|
|
Fiber view and magnification
|
X/Y : 200X, Max 400X
|
|
Power supply
|
DC Lithium polymer battery (DC 14.8V, 4700,
6000mAh-option),
100~240V
AC Adapter
|
|
No. of splice cycles with battery
|
300cycle
|
|
Electrode life
|
More than 3,500 times
|
|
Terminals
|
USB, RCA, External Power(DC 12V Available for car
cigar jack)
|
|
|
l STANDARD PACKAGE
|
|
Category
|
Model
|
Q’ty
|
|
Arc Fusion Splicer
|
K7
|
1
|
|
AC Adapter
|
F1-1
|
1
|
|
USB Cable
|
–
|
1
|
|
User Manual
|
–
|
1
|
|
Sleeve Loader
|
S312
|
2
|
|
Spare Electrode
|
EI-21
|
1 pair
|
|
Battery Pack
|
K713
|
1
|
|
Colling Tray
|
CT-03
|
1
|
|
Manual Stripper
|
CF-02
|
1
|
|
Tool Box
|
–
|
1
|
|
Carrying Case
|
Hard Case
|
1
|
|
Alcohol Dispenser
|
–
|
1
|
|
l OPTION PACKAGE
|
|
Category
|
Model
|
|
Battery Pack
|
K713
|
|
Fiber Cleaver
|
CS-03A
|
|
Cleaver Blade
|
BI-05
|
|
Electrode
|
EI-21
|
|
Fiber Holder
|
HS-250, HS-900, HS-2.5, HS-IN,HS-SC/FC, HS-LC,
HS-ST,LS-900
|
|
Sleeve
|
S-160(60mm),S-140(40mm)
IS-60(60mm), IS-45(45mm)
|
|
Sleeving Clamp
|
SC-01
|
|
SOC Connector
|
SC, LC, FC, ST (Refer to FTTx Solution catalogue)
|
|
Cleaver
|
CS-03A
|
|
External Power
|
DC 12V Available for car cigar jack
|
|
|
|
